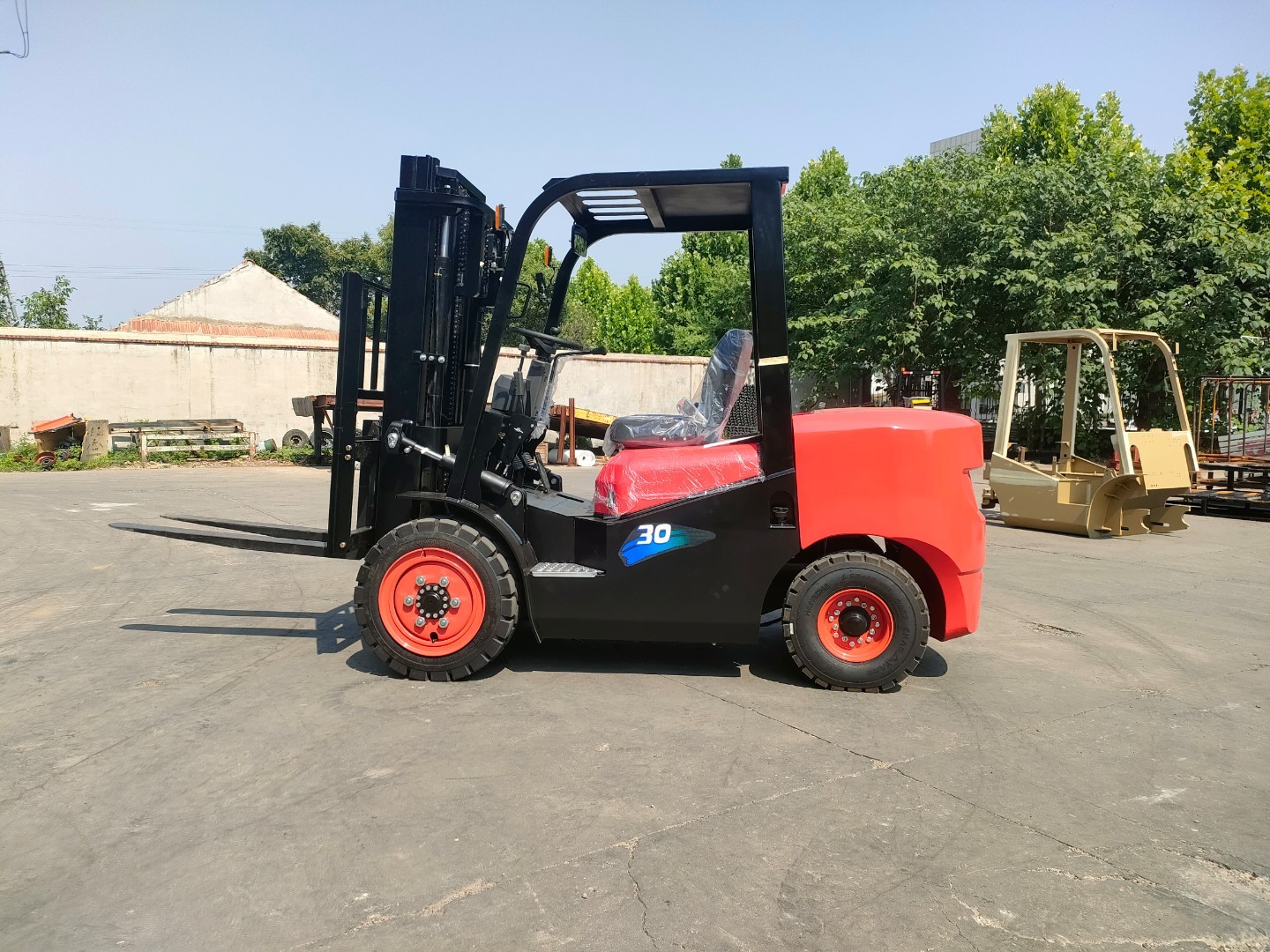

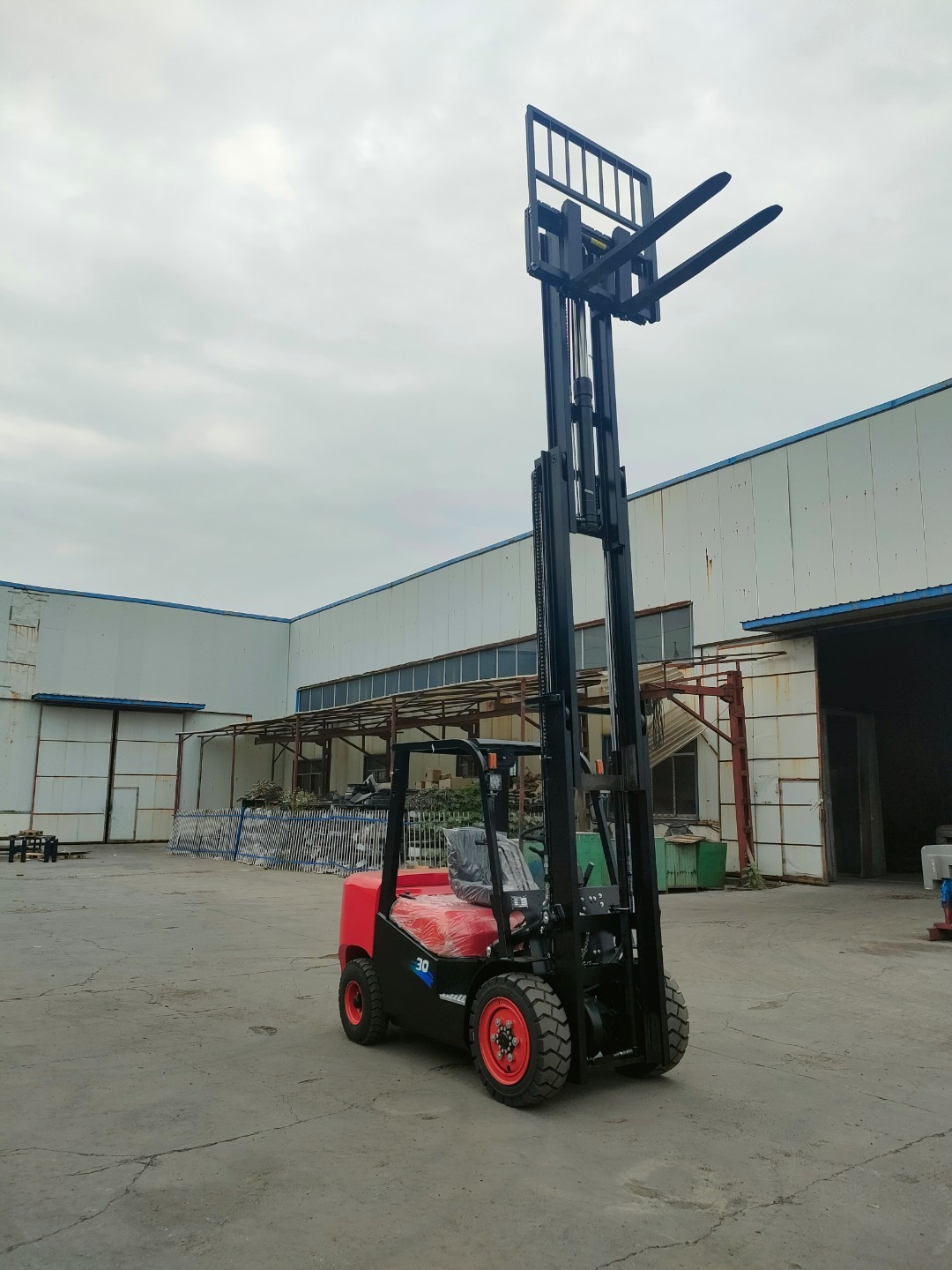

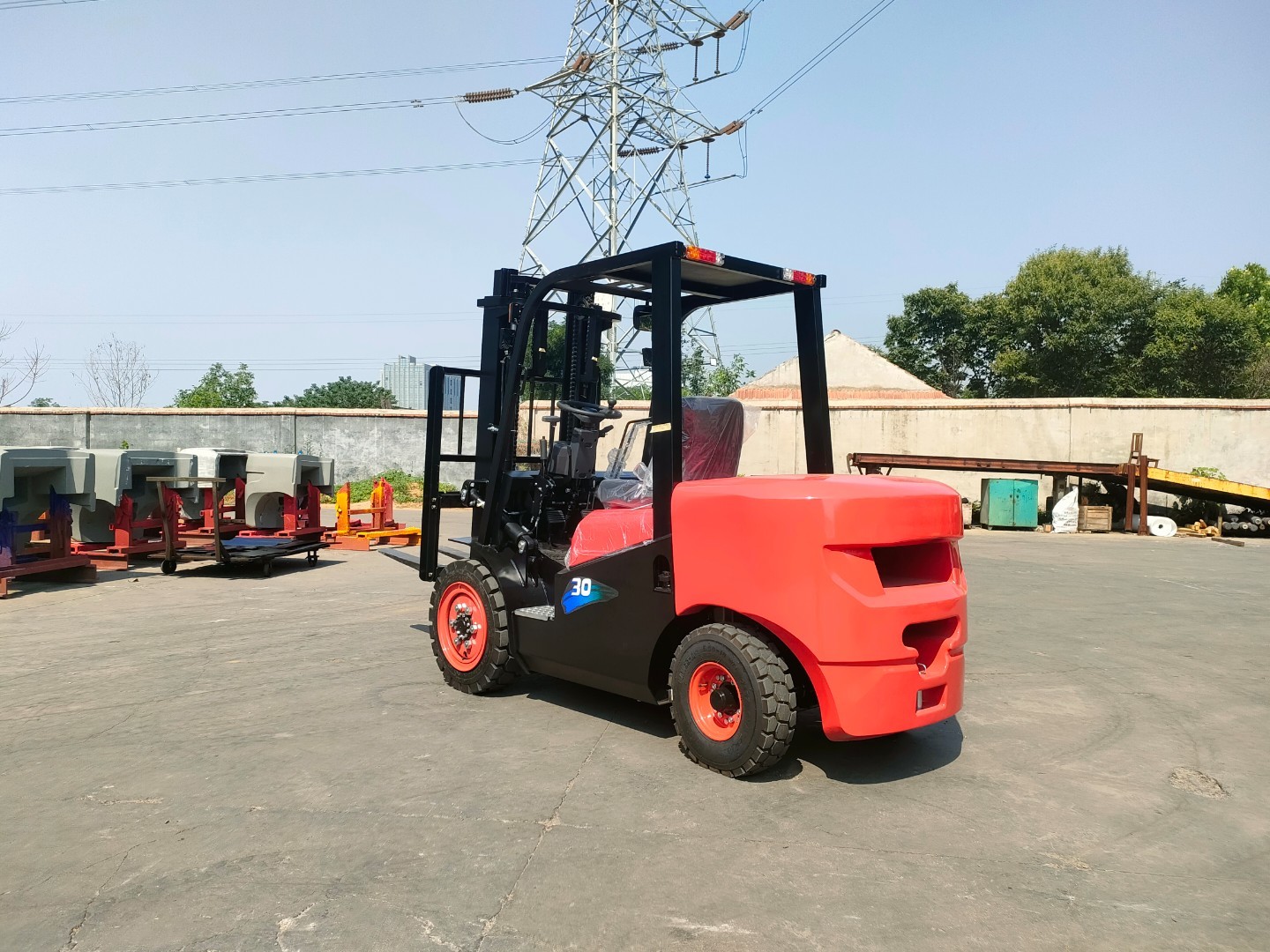

4 Ton Large Diesel Forklift Designed for Demanding Applications

Podstawowe informacje

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	KAD
Orzecznictwo:	CE
Numer modelu:	CPD

Minimalne zamówienie:	1
Cena:	6000-8000
Szczegóły pakowania:	żelazna paleta + folia z tworzywa sztucznego
Czas dostawy:	10 dni roboczych
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	50 jednostek / miesiąc

Najlepsza cena Skontaktuj się teraz

Pojemność ładowania:	1000-3500 kg	Wysokość ładunku:	3000mm-6000mm
Bateria:	12 V/80 Ah	Typ:	Diesel Foklift
Kolor:	Klient zażądał	Funkcja:	Łatwa obsługa Bezpieczeństwo Wygoda
Aplikacja:	Przemysł	Orzecznictwo:	CE
Typ mocy:	Moc Diesla
Podkreślić:	4 ton diesel forklift , large diesel forklift , heavy-duty diesel forklift

4 Ton Large Diesel Forklift Designed for Demanding Applications

Maximize your return on investment with a diesel forklift designed for minimal downtime and effortless servicing. Every component is engineered for quick access and extended service intervals.
Quick-Access Engineering: The engine compartment opens wide, with modular components and quick-disconnect couplings. Filters and routine service points are positioned for easy reach, reducing maintenance time by over 30%.
Extended Service Life: Critical systems like the reinforced mast and drive axle are built with premium materials and sealed against contaminants, dramatically increasing their lifespan and reducing the frequency of costly repairs.
Clear Diagnostic Interface: A standard digital dashboard provides real-time operational data and fault code alerts, enabling proactive maintenance and faster troubleshooting.
Global Parts Support: We ensure the availability of a common parts kit and global supply chain support, guaranteeing that your operations are never halted waiting for a component.
Unmatched Off-Road Capability: Equipped with large, deep-tread off-road tires and a high-clearance chassis to ensure superior traction and stability on any surface.
All-Weather Durability: The fully sealed, corrosion-resistant chassis and critical component guards protect against dust, mud, and moisture, guaranteeing longevity in harsh conditions.
Exceptional Overload & Grip Performance: Beyond a strong overload capacity, it features a limited-slip differential for enhanced wheel grip, preventing sinking and slippage on soft ground.
All-Terrain Versatility: Multiple mast heights and specialized tire options (e.g., snow tires) are available, making it the ideal solution for lumber yards, construction sites, and agricultural work.

advantage:

1. Integrated welded frame, sturdy and reliable, reinforced tail stock, enhancing overall vehicle safety.
2.Adopting a wide field of view gantry, the driver's field of view is wider. The gantry, chain, and oil cylinder are designed with high strength, and have strong overload capacity. Various models of height gantry can be selected.
3.Using a dual filter air filter, dual filtration extends engine life.

4. Add shock-absorbing rubber pads at the connection between the steering axle and the frame to reduce vehicle vibration and improve driving comfort.

If you have any questions about this DIESEL FORKLIFT, please feel free to contact me via the following methods. I will be on call 24 hours a day. Thank you.

Model		CPC30/CPCD30
Rated Capacity	kg	3000
Load Center	mm	500
Power Type		Diesel
Max, Lifting Speed (No-Load / Full-Load)	mm/s	450 / 440
Max. Driving Speed (Full-Load /No-Load)	km/h	18 / 20
Max. Towing Capacity(Full-Load/No-Load	kN	15.5 / 10.5
Gradeability(Full-Load/No-Load)	%	15 / 20
Lifting Height	mm	3000
Free Lift Height	mm	80
Mast Tilting Angle (Forward-Backward)	(°)	6 / 12
Min.Turning Radius	mm	2530
Min.Right Angle Aisle Width	mm	2050
Min. Ground Clearance	mm	135
Overall Length (including Fork)	mm	4170
Overall Width	mm	1230
Overall Height (Mast Lowered)	mm	2110
Overall Height (Mast Extended)	mm	4270
Overall Height to Overhead	mm	2105
Front Overhang	mm	465
Wheelbase	mm	1760
Front Tread	mm	1000
Rear Tread	mm	970
Front Wheel	mm	28*9-15
Rear Wheel	mm	6.50-10
Fork Width	mm	122
Fork Thickness	mm	45
Backrest Height	mm	1225
Fork Length	mm	1220
Engine Model		C490BPG
Rate Power	KW	40
Rotate Speed at Rate Power	rpm	2650
Max. Torque	Nm	162
Rotation Speed at Max. Torque	rpm	1800 ~ 1900
Type of Power Shift		Mechanical / Hydraulic
Curb Weight	kg	4100

4 Ton Large Diesel Forklift Designed for Demanding Applications 3

Q1. What is your terms of packing? A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated

Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time? A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship? 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
