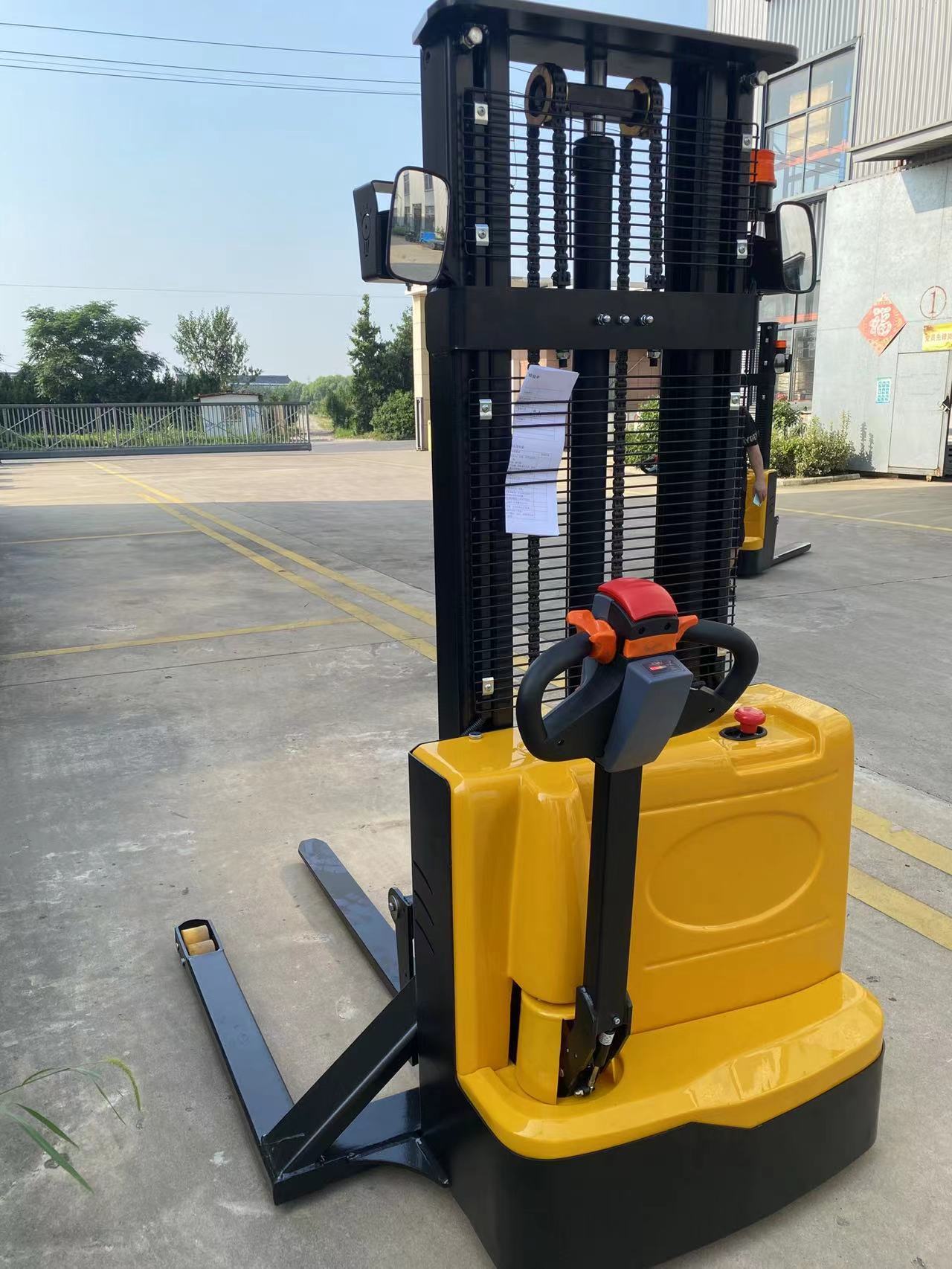

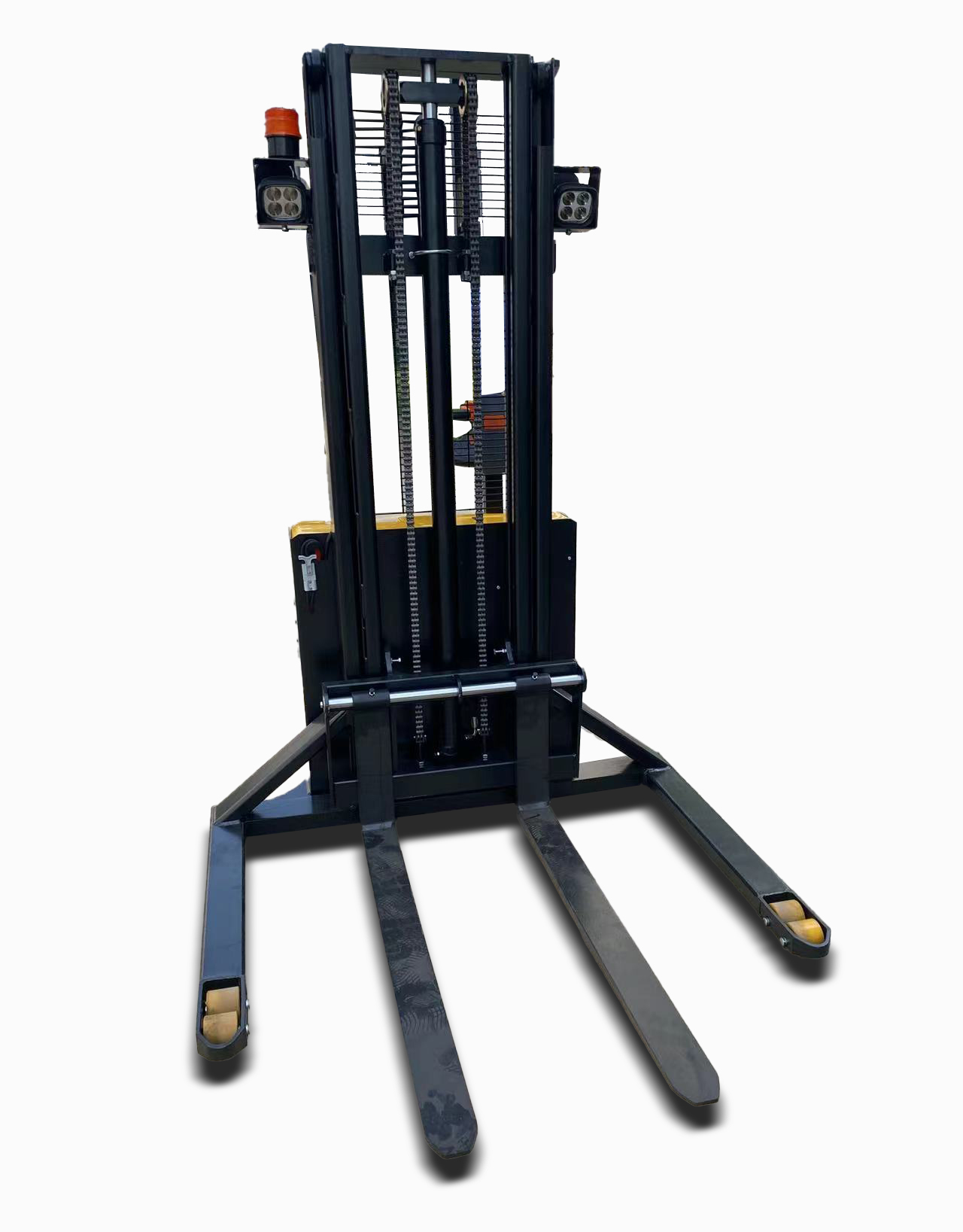

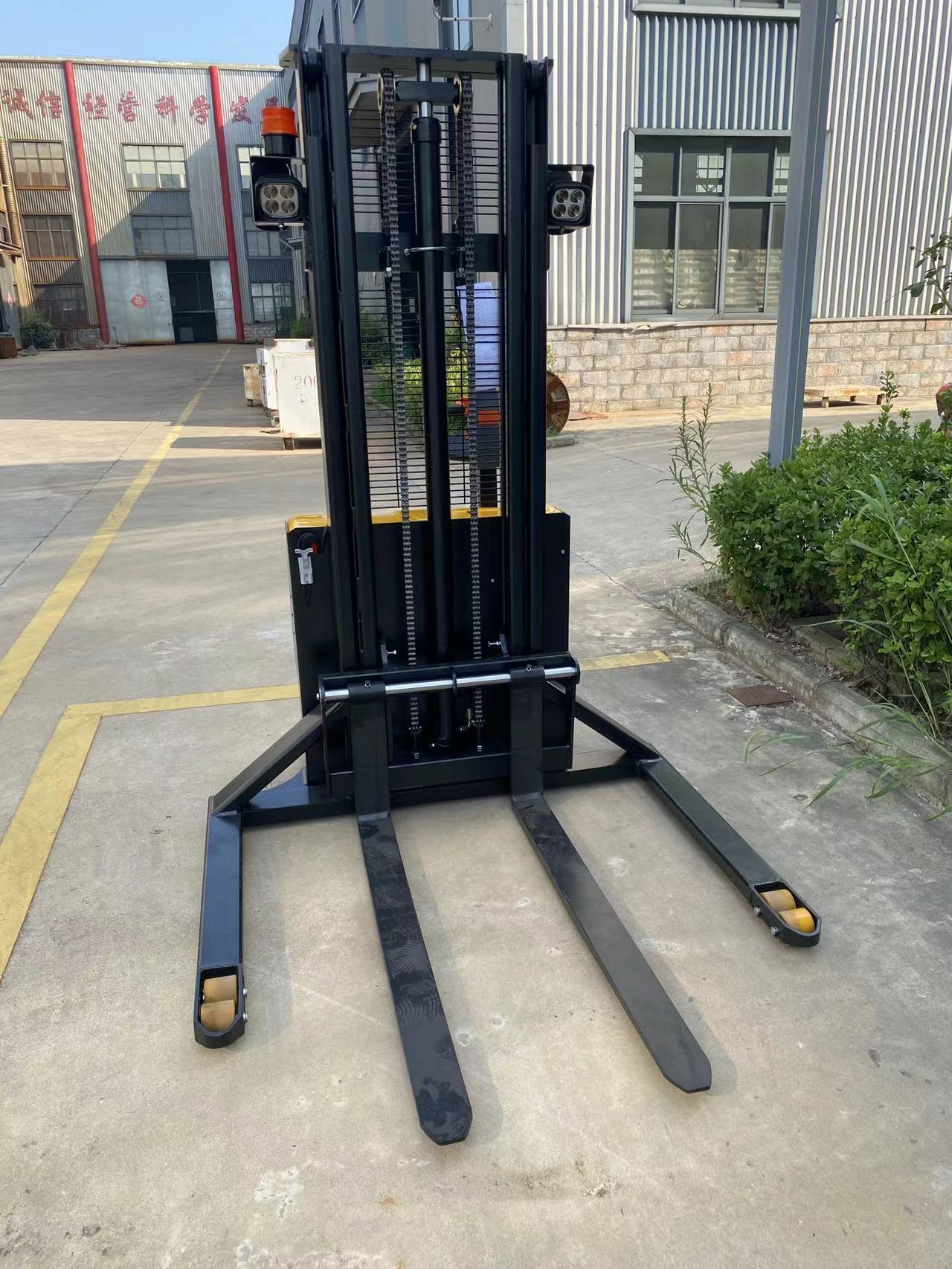

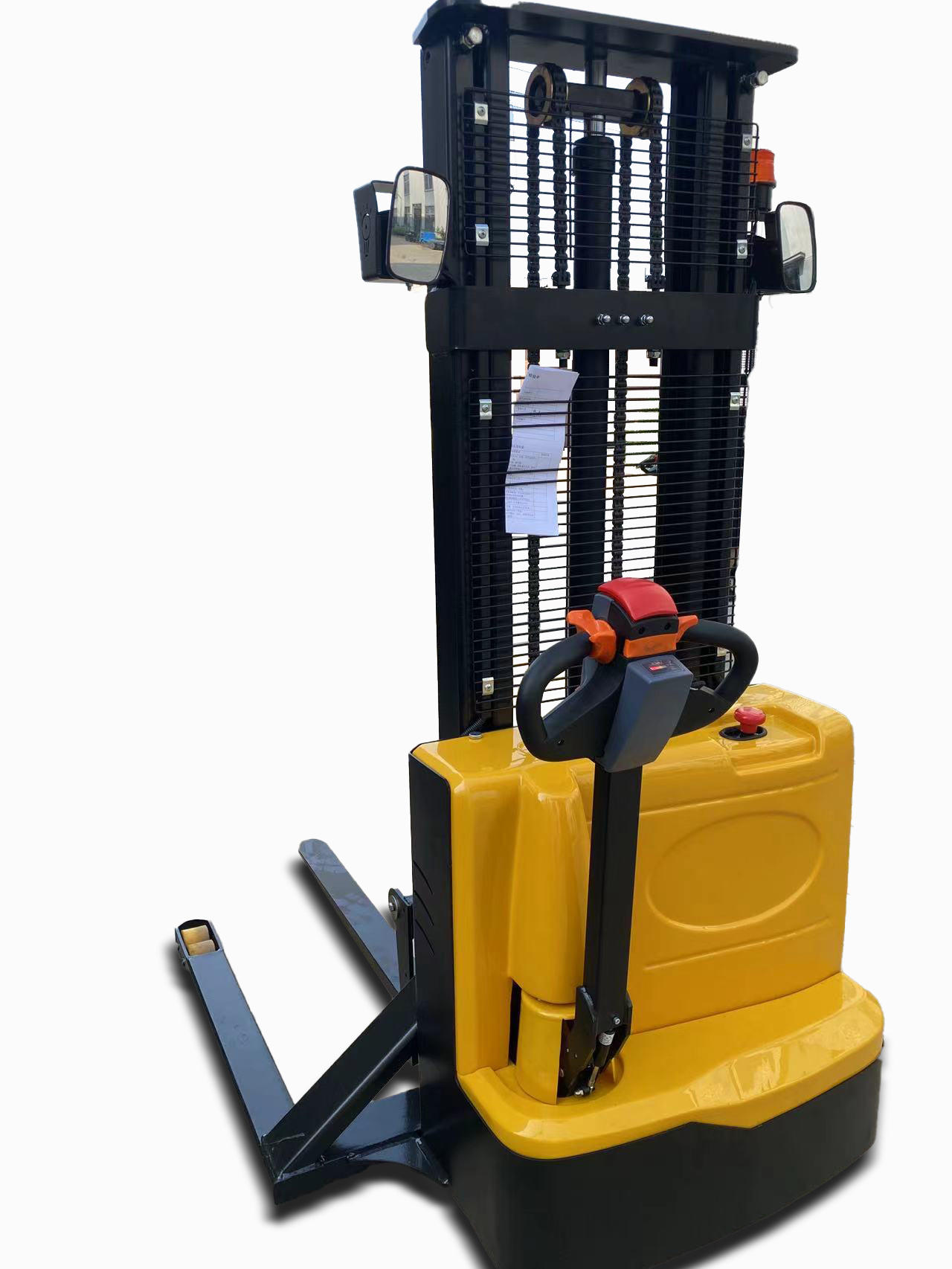

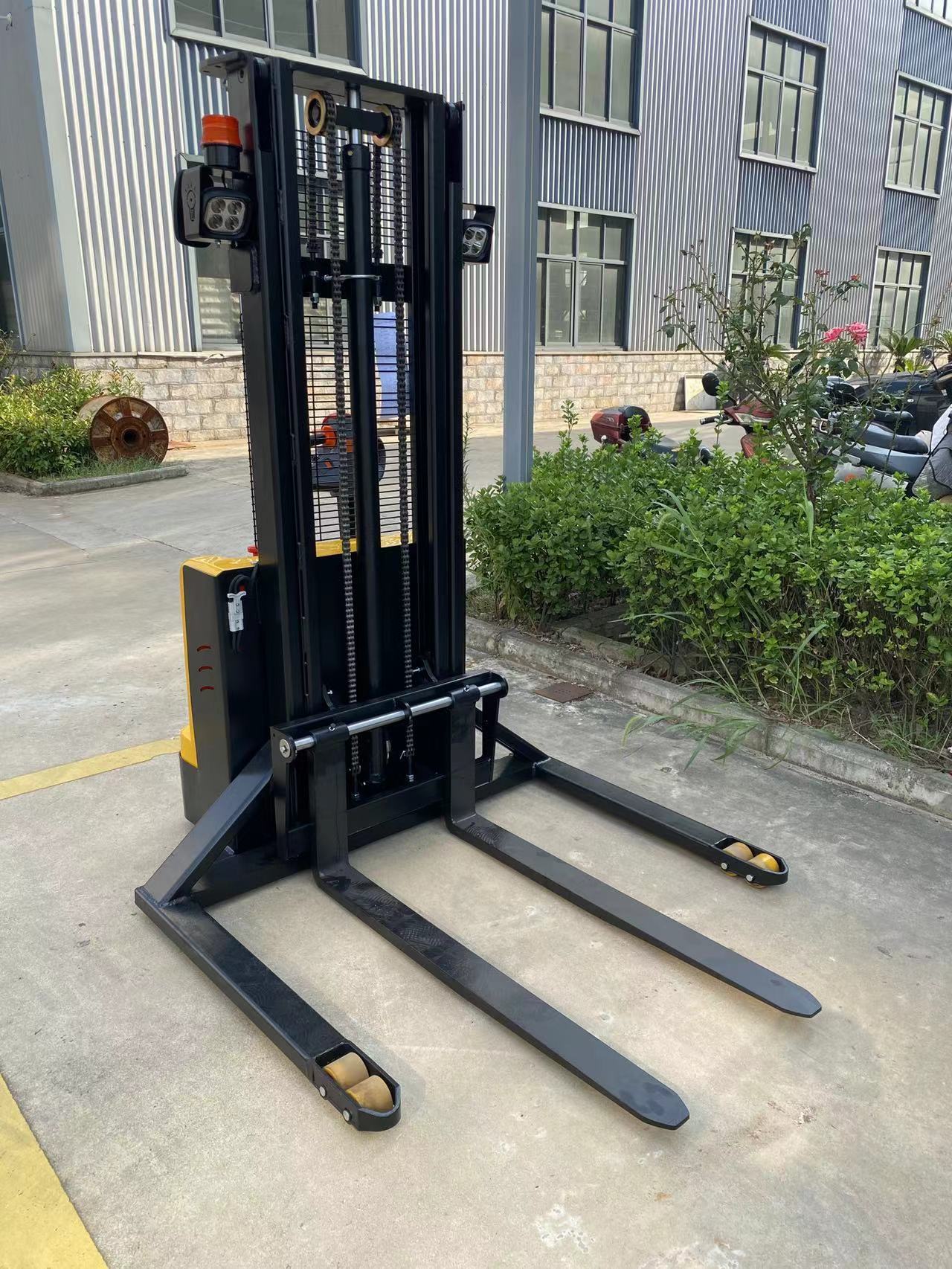

1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery

Podstawowe informacje

Miejsce pochodzenia:	Jiangsu, Chiny, CN; JIA
Nazwa handlowa:	KAD

Minimalne zamówienie:	1
Cena:	$1,300-1,400

Najlepsza cena Skontaktuj się teraz

Długość widelca:	1070 mm/na zamówienie	Szerokość widelca:	550/680 mm/dostosowany
Centrum załadunku:	500 mm	Waga ładunku:	1500 kg
Napięcie akumulatora:	24 V.	Pojemność baterii:	80 Ah
Wysokość ładunku:	3000 mm	Rodzaj masztu:	2 etap / 3 etap
Tryb napędu:	Walkie Steer	Źródło zasilania:	Silnik DC
Minimalna wysokość podnoszenia:	1580 mm	Ogólne wymiary:	1770 (l)850 (w)1580 (h)
Waga:	500 kg	Prędkość jazdy:	5,0/5,0 mm/s
Prędkość podnoszenia:	140/135 mm/s
Podkreślić:	1.5 ton electric pallet stacker , electric pallet stacker 3000mm lift , 24V battery pallet stacker

Hot Sale 1.5 Ton 2m 3m Walkie Electric Stacker Electric Pallet Stacker Widen Fixed Leg

Product Specifications

Attribute	Value
Condition	New
Fork Length	1070mm/customized
Fork Width	550/680mm/customized
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising
Terrain Adaptability	Indoor Flooring, Outdoor Pavement, other
Load Center	500 mm
Load weight	1500KG
Battery	24V/80Ah
Battery type	Lead acid battery
Load height	3000mm
Warranty	1 Year/2000 Working Hours
Mast	2 Stage/3 Stage
Loading Capacity	1500kg
Drive mode	Walkie Steer
Power Source	DC MOTOR
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Pressure vessel, motor, Bearing, Gear, Pump, Gearbox, Engine
Min. Lifting Height	1580mm
Overall Dimensions	1770(L)850(w)1580(h)
Weight (KG)	500 kg

Key Features

Enhanced Stability: Wider legs provide a larger support area, increasing overall stability and reducing tipping risk
Improved Safety: Better weight distribution minimizes lateral tilting and swaying
Operational Stability: Enables handling higher loads with improved precision
Adaptation to Uneven Surfaces: Maintains stability on irregular ground conditions
Reduced Impact on Goods: Even weight distribution minimizes pressure on delicate items
Increased Handling Efficiency: Smooth operation reduces interruptions and improves productivity

Technical Specifications

MODEL	CDDW12 CDDW16
Drive system	Battery
Driving mode	Walkie
Load Capacity	Q	KG	1200/1600
Load Center	MM		500
Weight(With battery)	CDDW12	KG	470/485/505/520
	CDDW16	KG	495/510/532/553
Wheels Material	PU
Lifting Height	H3	MM	1600/2000/2500/3000
Lowest Mast	H1	MM	2080/1580/1830/2080
Max.Height when operating	H4	MM	2080/2730/3230/3730
Min.Height of Fork	H13	MM	≤90
Length	L	MM	1770
Width	B	MM	850
Fork Length	L1	MM	1070
Wheelbase	Y	MM	1250
Fork Outside Width	B1	MM	680
Fork Inside Width	B2	MM	305
Min.Turning Radius	WA	MM	1390
Driving Speed (Empty/Full Load)	MM/S		5.0/5.0
Lifting Speed (Empty/Full Load)	MM/S		140/135
Descending Speed (Empty/Full Load)	MM/S		150/155
Max.Gradient (Empty/Full Load)	%		7/5
Brake	Electromagnetic
Driving Motor	KW		DC/0.75
Lifting Motor	KW		DC/2.2
Battery Capacity	V/Ah		2470/2480Ah
Noise level DIN 12053	DB		＜70

Main Components

Control Handle

Domestic famous control handle with functional buttons that can control UP/DOWN, FORWARD/BACKWARD sensitively. Uses Curtis brand accelerator to ensure safe operating.

Operation Panel

Combined with the key, battery indicator, and emergency switch. Functional panel with beautiful design makes work joyful and easy.

Machine Parts

Strong cylinder and chain ensure smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.

Frequently Asked Questions

Q1. What is your terms of packing?

A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q6. How do you make our business long-term and good relationship?

1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
